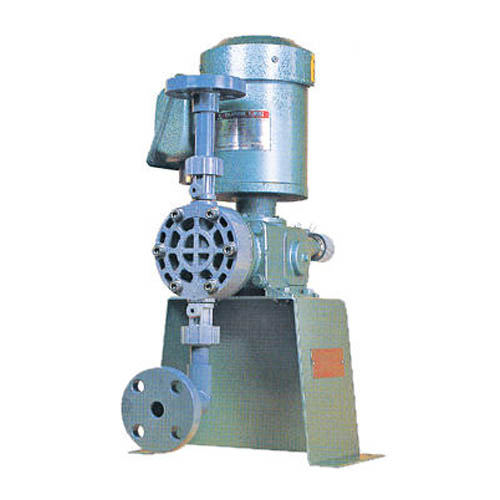

NIKKISO EIKO Diaphragm Metering Pump – ADONY AHA Series

“Space-saving”, it’s a vertical style Wide selection liquid end materials PVC, Stainless steel, PVDF, PTFE etc… Convenience connection style, Flange (JIS, ANSI, DIN), Hose, Union, Thread, etc.

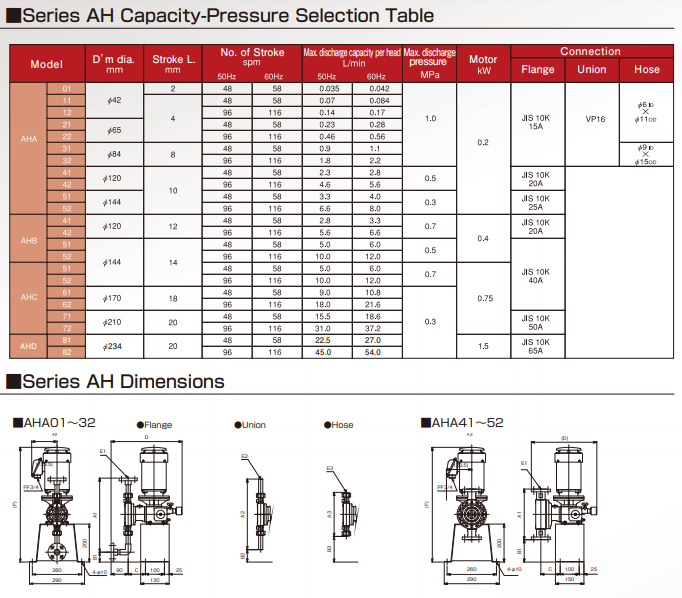

Simple structure of “Oil bath style power end” Wide range of discharge capacity 0.035 L/min – 54.0 L/min Multiple head available

Max. discharge pressure; 1.0 MPa (AHA01-32)

Stability discharge accuracy ±2% (repeatability)

Discharge capacity control: 25 to 100% stroke length

10 to 100% number of stroke
